Place of Origin:
China
Marca:
Hengyang
Certificação:
ISO9001
Model Number:
waste crusher
vídeo

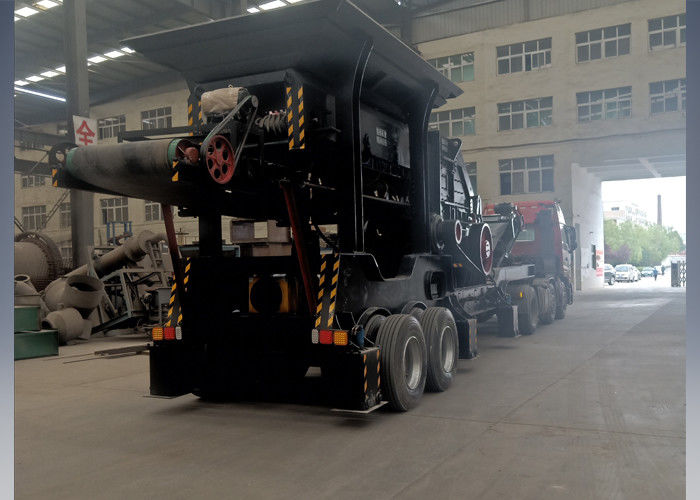

Mobile crushing plant also named portable crusher station, is a new type of crushing equipment, researched and designed by our experienced engineers. The Hengyang mobile crusher station is composed of feeder, jaw crusher, belt conveyor Adopt the latest manufacturing technology, select high quality high chromium plate hammer, wear-resisting counterattack lining board, large crushing ratio.
Application:
Techanical Details:
| Mobile impact crusher plant | PP1010PFS | PP1210PFS | PP1214PFS | |
| Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
| Width(m) | 2.5 | 2.7 | 2.9 | |
| Height(m) | 4.2 | 4.2 | 4.2 | |
| Impact crusher | Feed size(mm) | 350 | 350 | 400 |
| Output size(mm) | 5-60 | 5-60 | 5-60 | |
| Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
| Motor power(kw) | 55-75 | 110-132 | 160-200 | |
| Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
| Motor power(kw) | 7.5 | 11 | 15 | |
| Diemension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
| Conveyor belt | Width(mm) | 500 | 500 | 650 |
| Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 |
|
