Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Série TTS
Price: 33,850.00 USD
Availability: InStock

Para casa > produtos > Stone & Sand Washing Line >

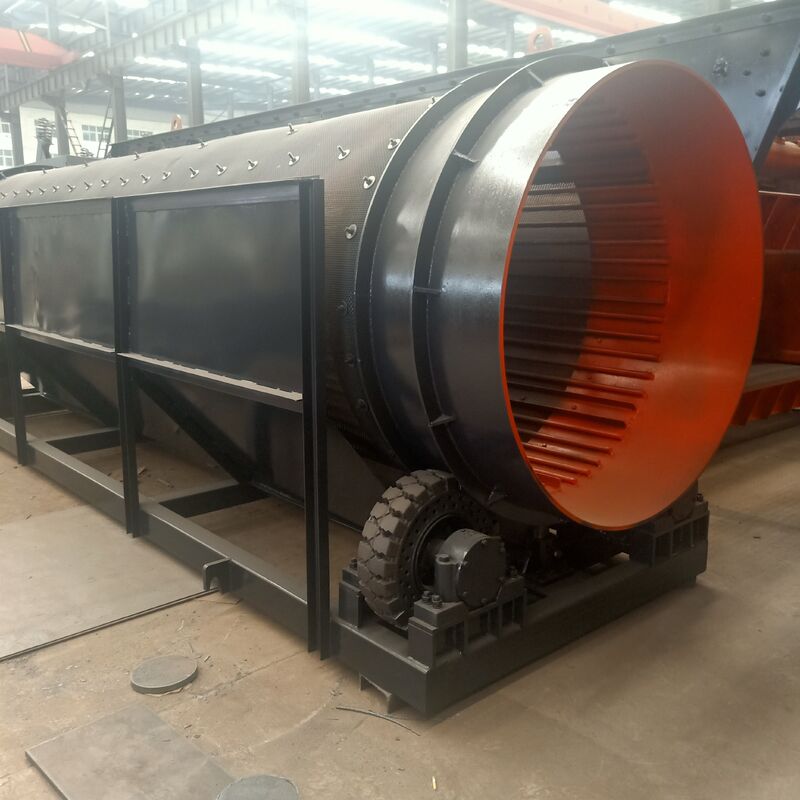

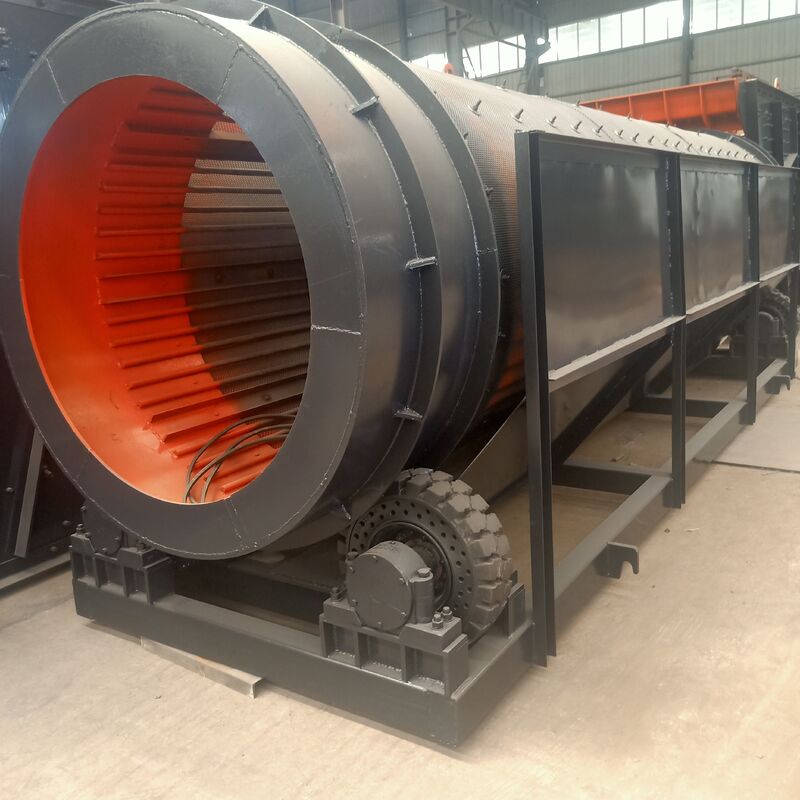

Metal Rotary Drum Screen

Rotary Drum Screen

Lugar de origem:

China

Marca:

hengyang

Certificação:

ISO9001

Número do modelo:

Série TTS

Contacte-nos

Solicite um orçamento

Detalhes do produto

Cor:

Personalizar

Aplicativo:

Lavar e separar

Material:

aço

Capacidade:

50-400t/h

OEM:

aceitar

Termos de pagamento e envio

Quantidade de ordem mínima

Preço

12000-55700USD/set

Detalhes da embalagem

Nociado

Tempo de entrega

15-20 dias

Termos de pagamento

T/T

Habilidade da fonte

300 CONJUNTOS/mês

PRODUTOS RELACIONADOS

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Obtenha o melhor preço

Customize PU Spiral Sand Washing Machinery

Obtenha o melhor preço

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Obtenha o melhor preço

Insutrial Use Rotary Screen Capacity 1-250t/h

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
