Name: Belt Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Transportador tipo B
Price: 8,650.00 USD
Availability: InStock

Para casa > produtos > Máquina de alimentação e transporte >

Belt Conveyor

industrial belt conveyor machine

heavy duty belt conveyor

material handling belt conveyor

Lugar de origem:

China

Marca:

hengyang

Certificação:

ISO9001

Número do modelo:

Transportador tipo B

Contacte-nos

Solicite um orçamento

Detalhes do produto

Capacidade:

50-700t/h

Doença:

Novo

OEM:

aceitar

Aplicativo:

Materiais de transporte

Garantia:

12 meses

Tensão:

Até o comprador

Termos de pagamento e envio

Quantidade de ordem mínima

Preço

5000-12300USD/set

Detalhes da embalagem

Nociado

Tempo de entrega

15-20 dias

Termos de pagamento

T/T

Habilidade da fonte

300 CONJUNTOS/mês

PRODUTOS RELACIONADOS

Transportador modular de placas de corrente

Obtenha o melhor preço

Chain Conveying Feeder

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

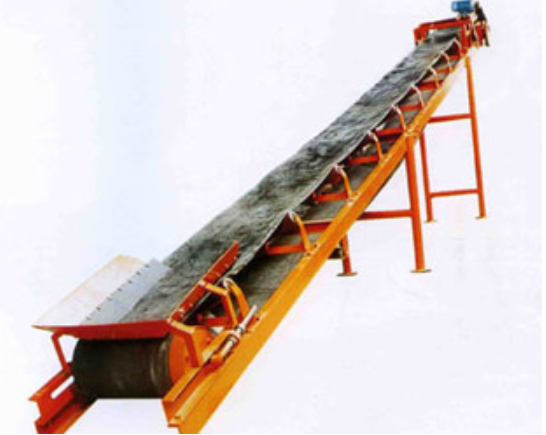

Belt Conveyor

Belt Conveyor is used to convey the loose and unit materials. All can be conveyed single or more machines ,according to the demands .As well as the conveyor system composition of the other conveyor equipments .That can meet all kinds of task .It is used in the scope that environment -45℃ to 46℃.the materials temperature less than 50℃.And it is widely used in mining ,metallurgy ,coal etc industries .

Working Principle Of Belt Conveyor:

When the Belt Conveyor is on operation ,through the friction between belt and transmission drum ,the belt then can move .From the loading point ,the materials is loading on the belt and then unloading from the unloading point.This can form the continuous logistics .Generally ,the materials are loading on the belt and then unloading from the transmission drum, as well as the special unloading equipment .

Characteristics Of Belt Conveyor:

Large delivery value ,simple structure ,convenient maintenance ,low cost and strong generality.

Technical Details:

Belt Width (mm)	Length(m) Power(kw)			Speed (m/s)	Production (t/h)
500	≤12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	≤12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	≤6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	≤105 5	10-207 5-11	20-40 11-22	1.3-2.0	435-853
1200	≤107 5	10-20 11	20-40 15-30	1.3-2.0	655-1284
